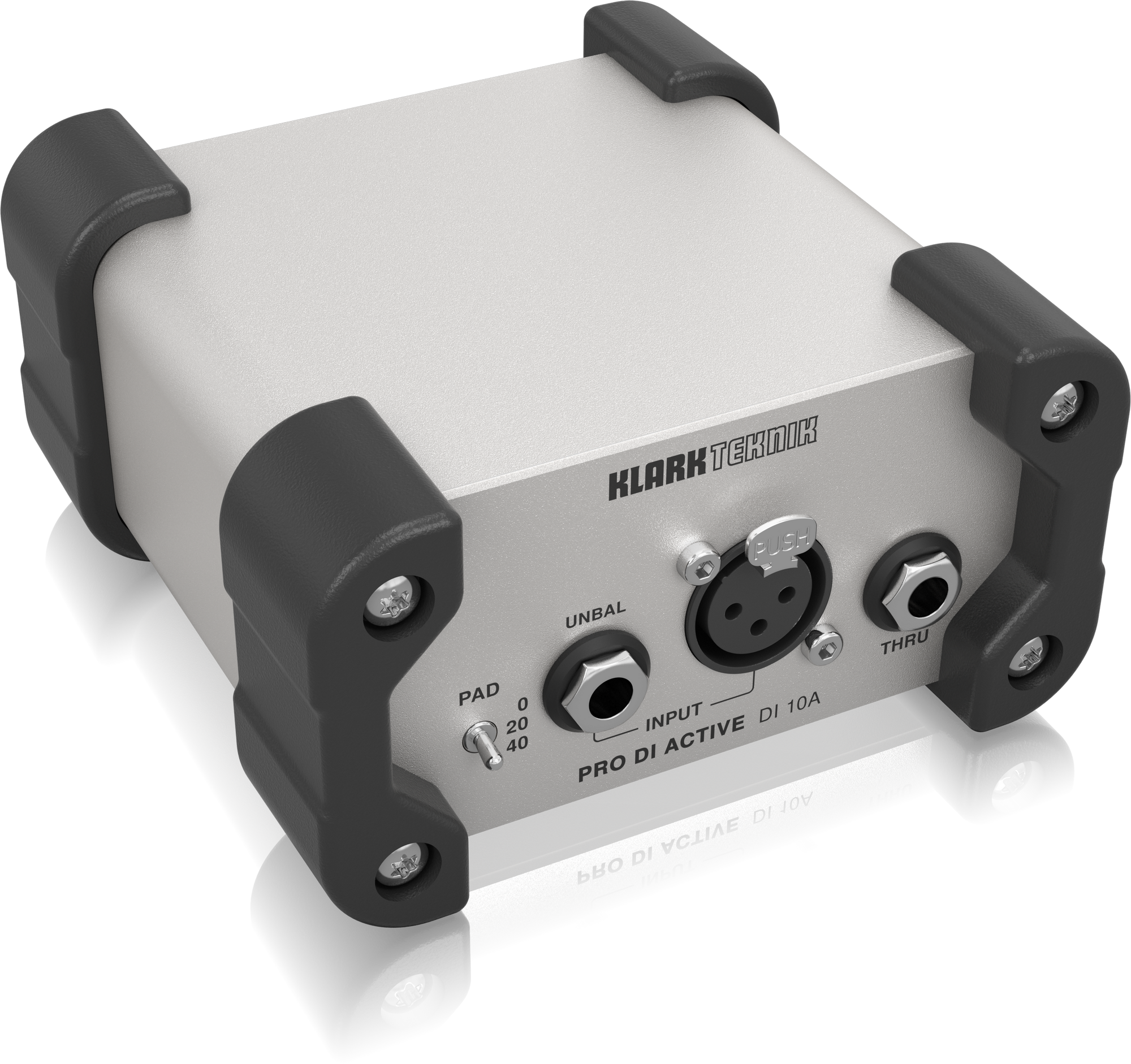

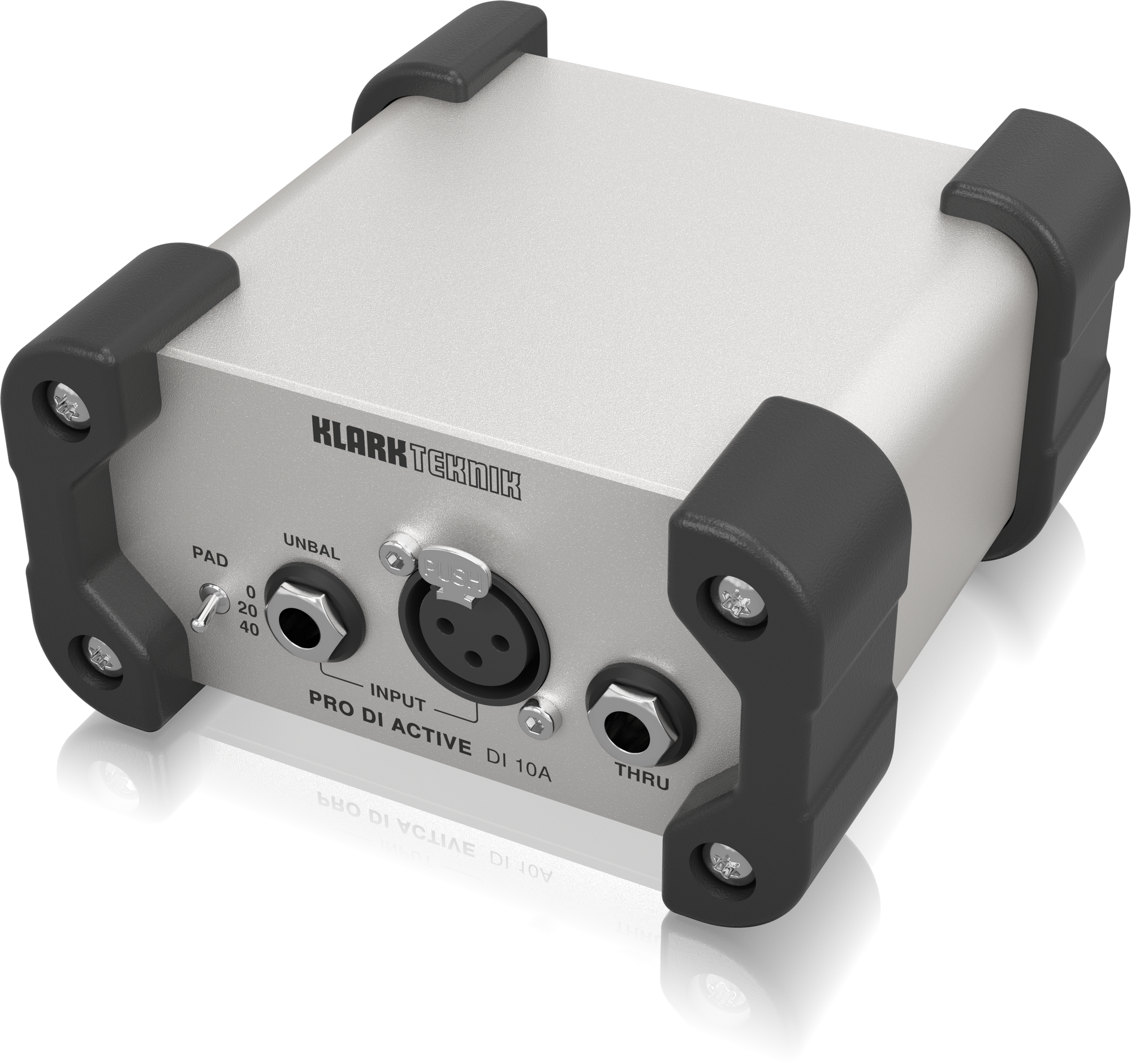

DI 10A

Active DI Box

• Suitable for instruments and multimedia applications
• Midas transformer
• Operation with +48 V phantom power or built-in 9 V battery (not included)
• Automatic switchover to battery operation if phantom power is lost

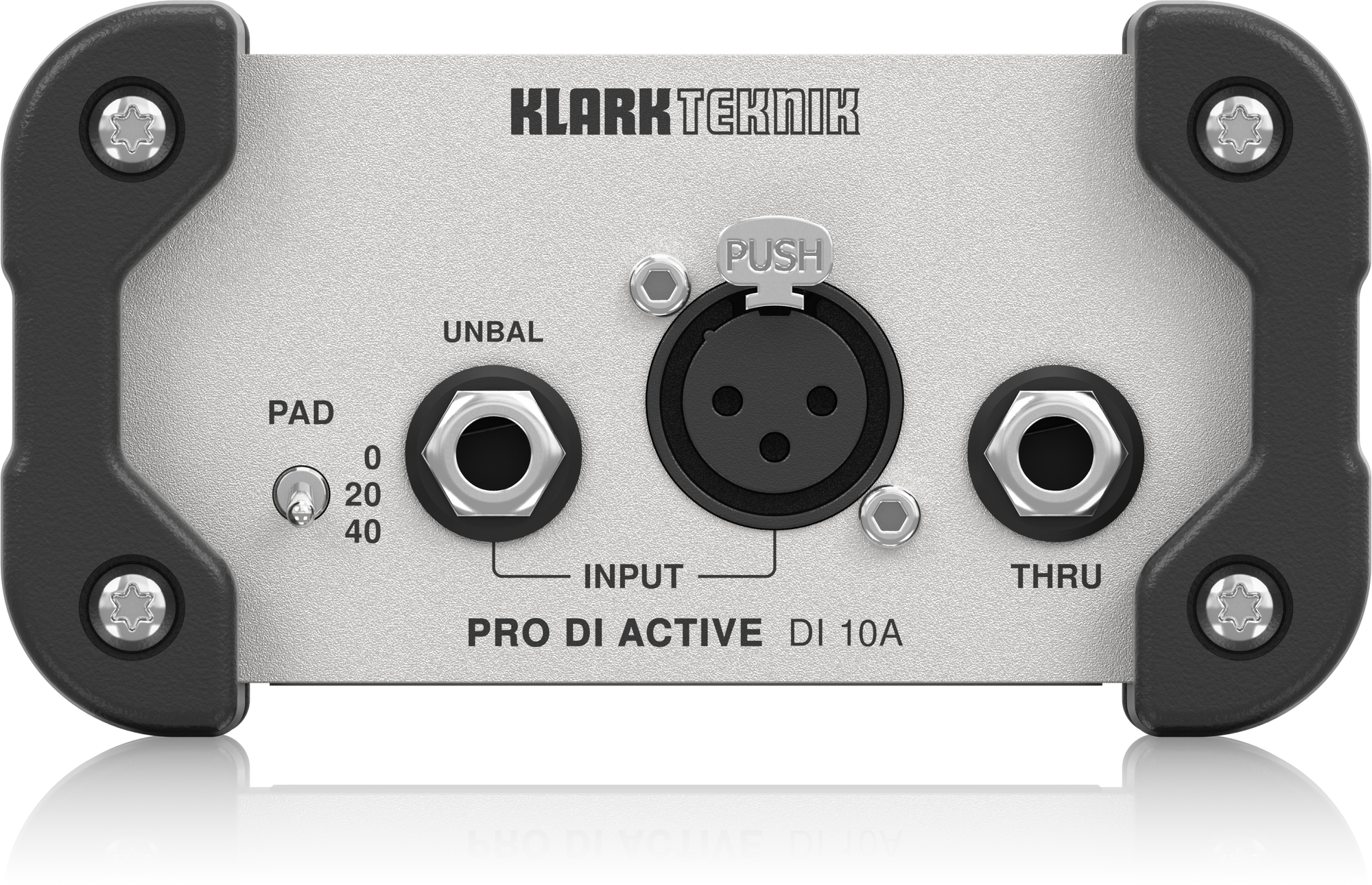

• XLR and 6.3 mm jack (mono) inputs

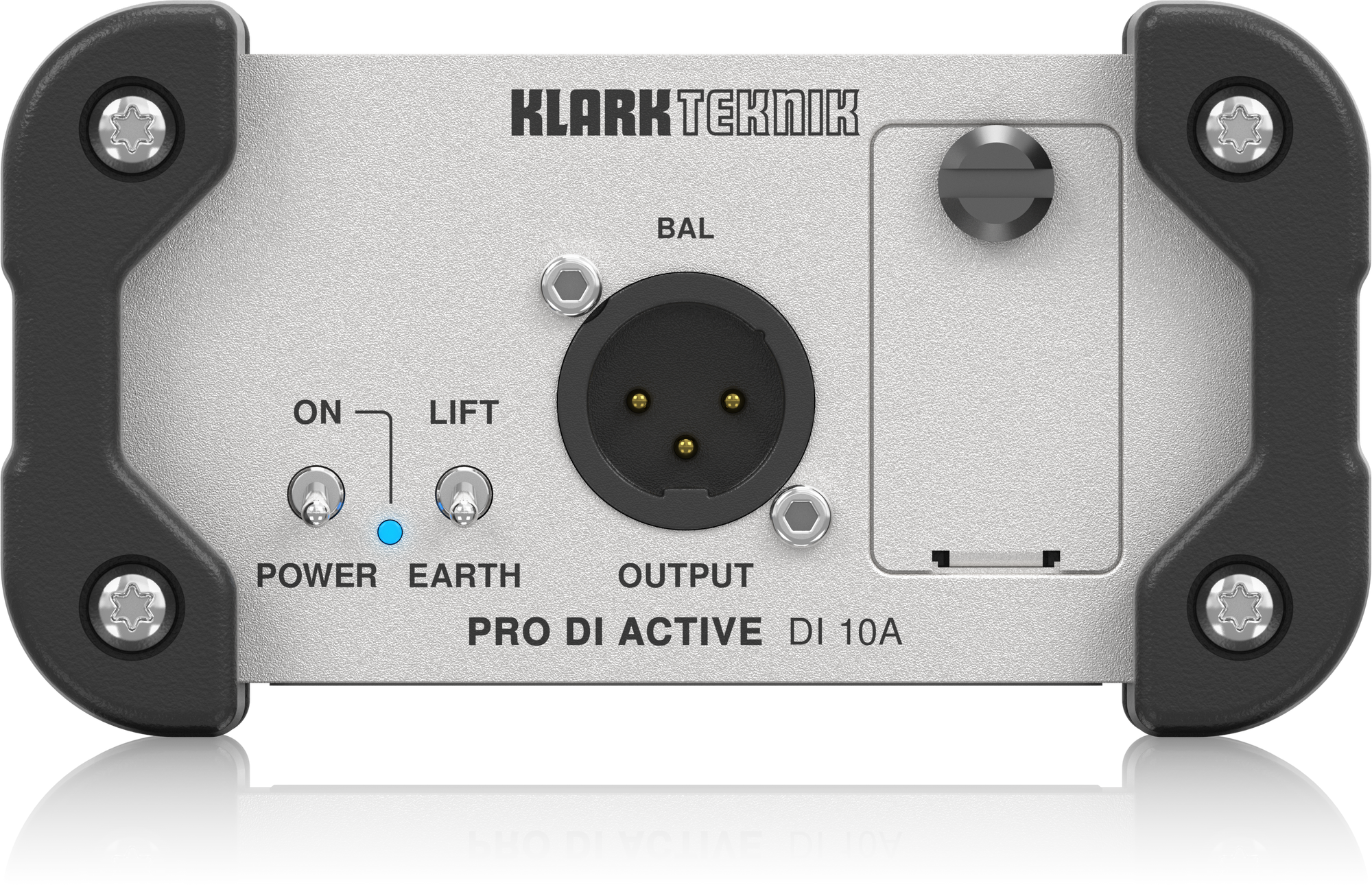

• Neutrik XLR output
• Pad switch: 0 / -20 / -40 dB
• Ground lift
• Power switch
• Input impedance: >250 kOhm
• Output impedance: >600 Ohm
• Signal-to-noise ratio: -112 dBu
• Sturdy, compact aluminium housing with protective hard rubber corners
• Dimensions (W x H x D):118 x 64 x 112 mm
• Weight: 0.56 kg
