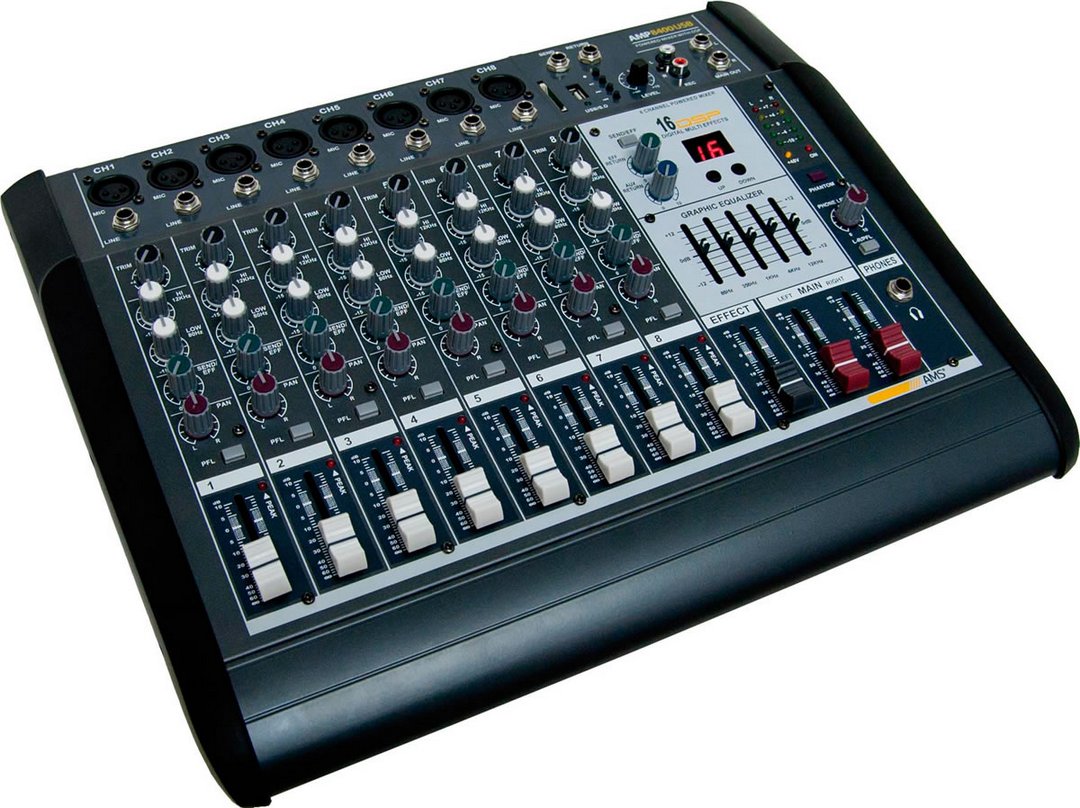

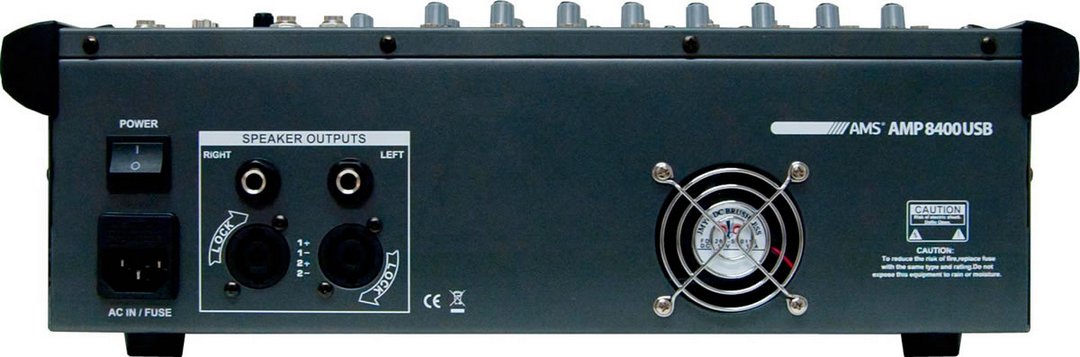

AMP 8400 USB

AMP 8400 USB
TECHNICAL DATA
·Description: 8 MIC/LINE mono channels self-powered mixer·Amplifier power: 2 x 150W @ 4ohm·MIC input: Balanced inputs·Bandwidth: 10 Hz to 60 kHz ±3dB·Distortion (THD+N): 0.01% t + 4 dBu, 1 kHz, 80 kHz bandwidth·Mic E.I.N.: -129.5 dBu,150 ohm/-117.3 dBqp, 150 ohm/-132 dBu/-122 dBqp·TRIM range: 10 dB to 60 dB·LINE input: Balanced inputs·Bandwidth: 10 Hz to 60 kHz ±3dB·Distortion (THD+N): 0.01% t + 4 dBu, 1 kHz, 80 kHz bandwidth·Level range: 10 dBu to – 40 dBu·Hi Equalization: 12 kHz ±15 dB·Lo Equalization: 80 Hz ±15 dB·Master output: 22 dBu balanced·Aux Send output: 22 dBu balanced·Main supply: 240 V AC, 50 Hz·Dimensions: 340 x 320 x 130 mm·Weight: 7,8 kg
FEATURES·8 mono channels mixer·2x 150W @ 4ohm power amplifier·Channels with +48V phantom supply·2 bands equalizer in all the channels·Send bus·Built-in DSP with 16 different effects·USB/SD interface for MP3 files·Double Master outputs with separate faders and pre-amplified outputs·2×5 bands graphic equalizer en Master section·Headphones and REC output·Cooling process with continuous fan
